 The Lost in Space B9 Robot Replica



Here’s a  peek into my latest “little” project. Building my own Lost In Space B9 Robot replica. For those of you old enough to remember, no explanation is necessary. For the younger ones looking in, he is the Robinson family’s environmental robot from the campy Lost in Space TV show during the mid sixties.  You may want to see the whole series, only 3 seasons.  And it is unlike any project I’ve done before. Theres a lot more info here: The B9 Robot Builders Club  Maybe you’ll want to build your own?



Pics from the LIS TV show.

2_01_Blast_off_into_Space_03_jpg   3_01_Condemned_of_Space_09_jpg

3_01_Condemned_of_Space_07_jpg   Picture2

Work began in 2004 and I finished in March of 2008.

I started with the torso.  Many start with the legs, but I wanted to get into the electronics and automation first.  Mine will be patterned after the original and made as a costume so there wont be a CSS added.

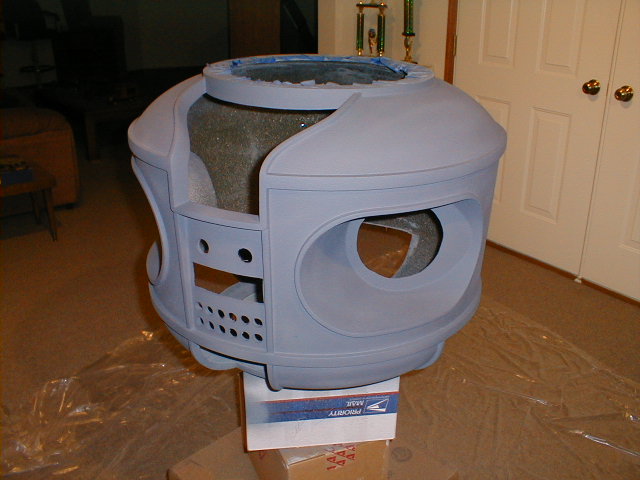

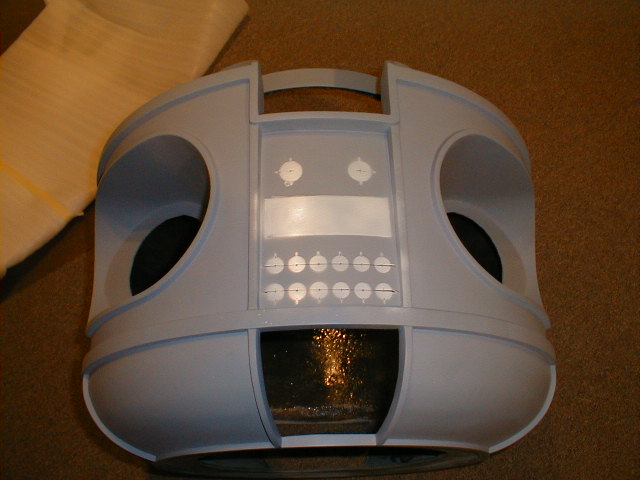

The torso section in the midst of being sanded and primered and the holes being cut out.



OLYMPUS DIGITAL CAMERA   OLYMPUS DIGITAL CAMERA

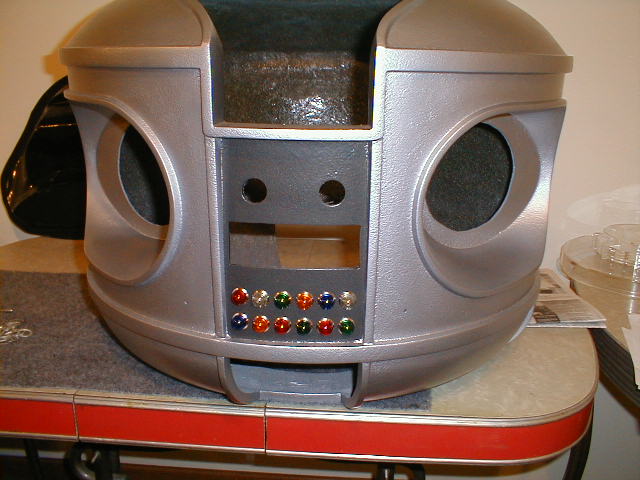

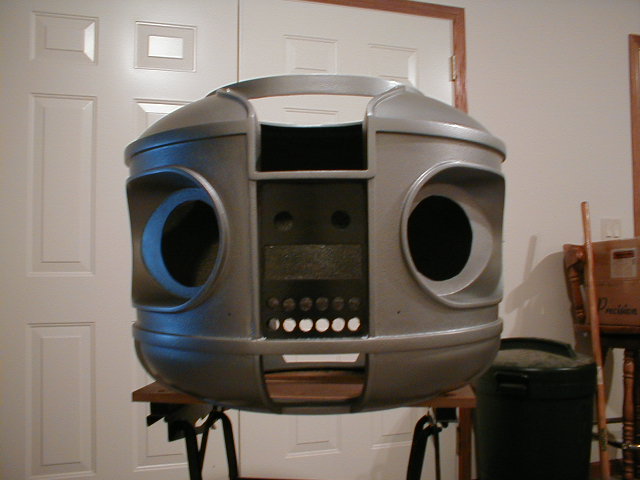

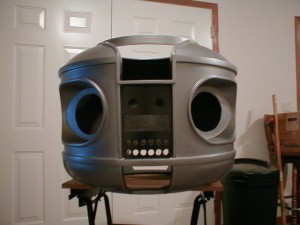

A little paint, Dupli Color T229,  and some of the lights being put in. Also test fitting the bubble, radar & collar.

OLYMPUS DIGITAL CAMERA   OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA   OLYMPUS DIGITAL CAMERA

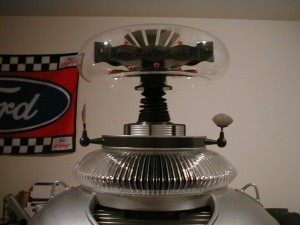

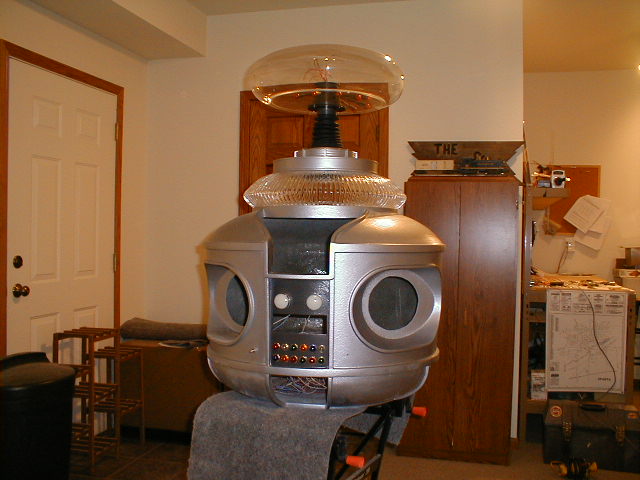

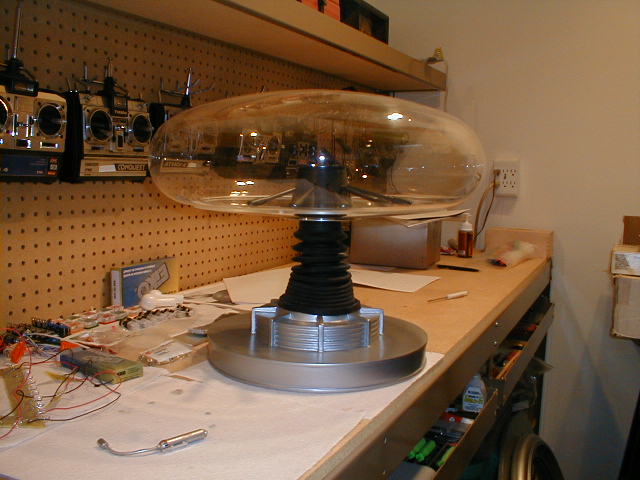

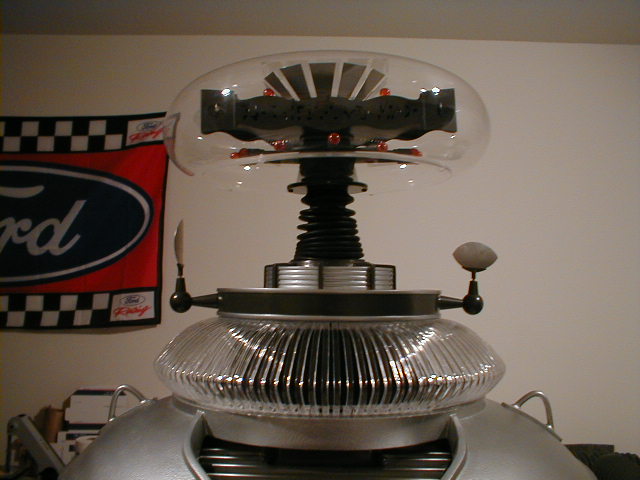

Radar and bubble initial test fitting.

OLYMPUS DIGITAL CAMERA

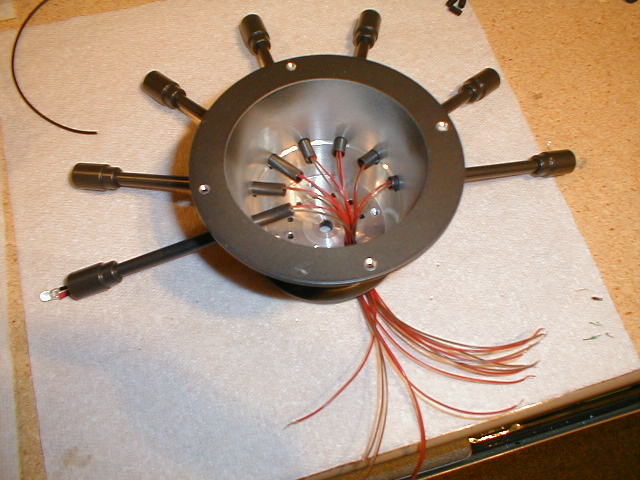

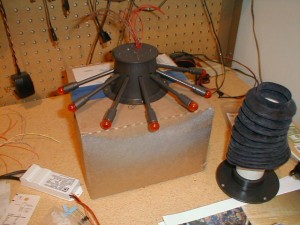

Finger lights mounting & wiring. I hollowed out the base of some small incandescent bulbs and inserted bright LED’s inside. The globes were painted orange. These will move up & down after the motor is installed and the crown will turn also.

OLYMPUS DIGITAL CAMERA     OLYMPUS DIGITAL CAMERA

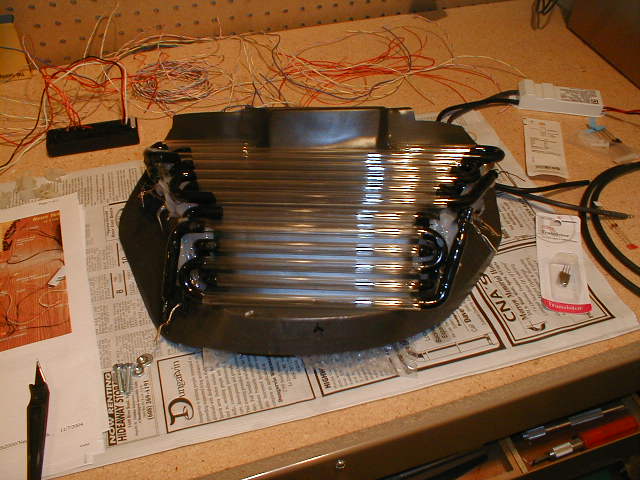

The neon “mouth” glued to the back plate and ready for wiring up the neon amp. This will flash in sync with the Robot’s voice just like on the series.

OLYMPUS DIGITAL CAMERA

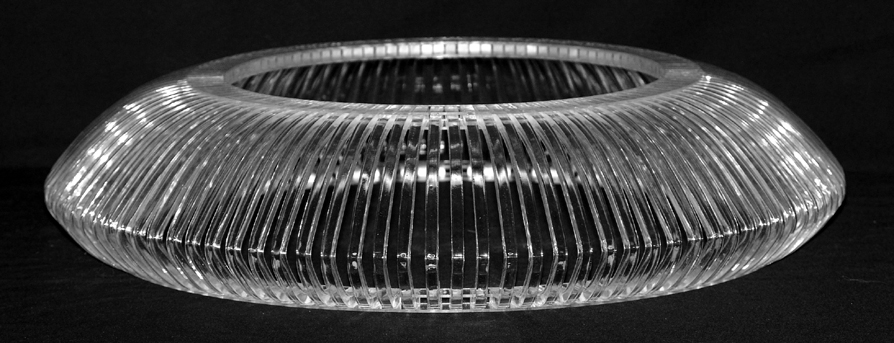

The robots plexiglass collar made by Fred Barton. An exact duplicate of the original robot’s.

 CollarClone



You can see the lights and animation done so far here:

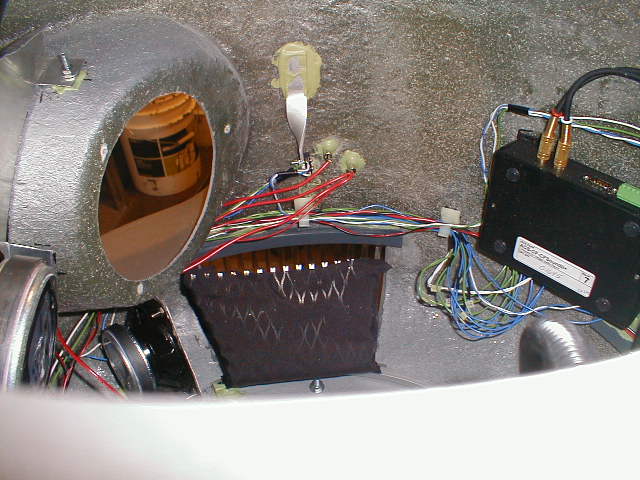

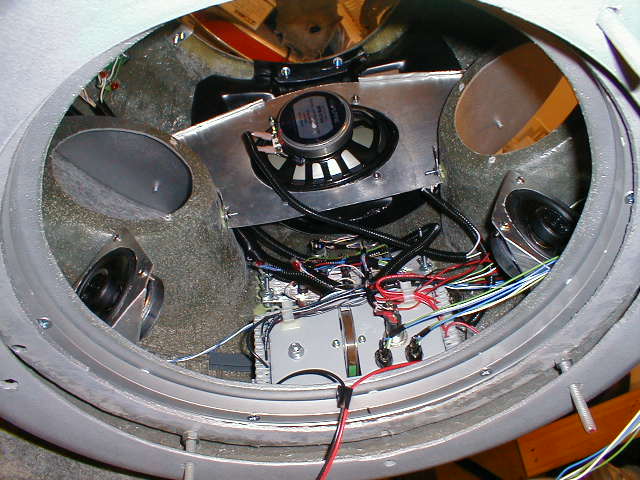

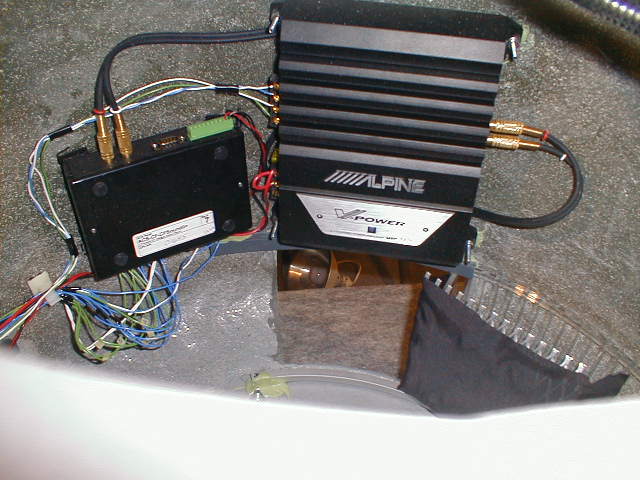

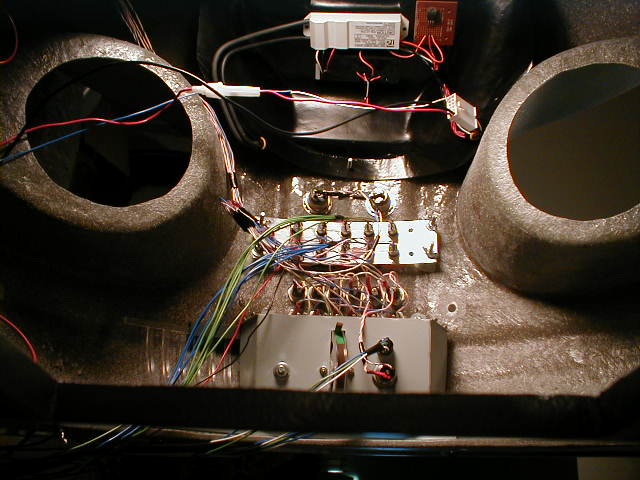

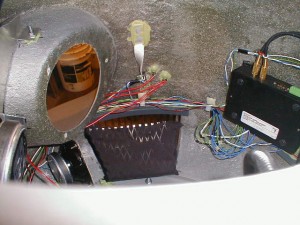

A look at the inside of the torso section with the wiring in place. You can see the speakers and amp. I’m using a CF Sound II module for the voice.   www.cfsound.com   Later I’ll have a plug on the tread section for a laptop or music source. You can also see the switch setup for the power pack.

OLYMPUS DIGITAL CAMERA  OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA  OLYMPUS DIGITAL CAMERA

OLYMPUS DIGITAL CAMERA

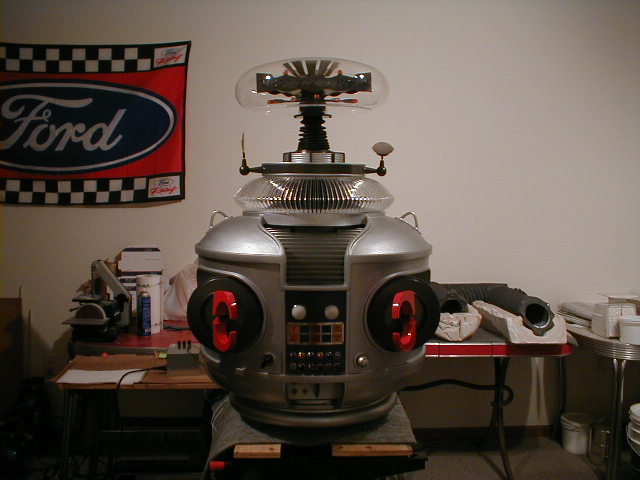

5-25-06 The project so far. Now the legs and tread section are next.

OLYMPUS DIGITAL CAMERA   OLYMPUS DIGITAL CAMERA



Movie of the B9 operating:

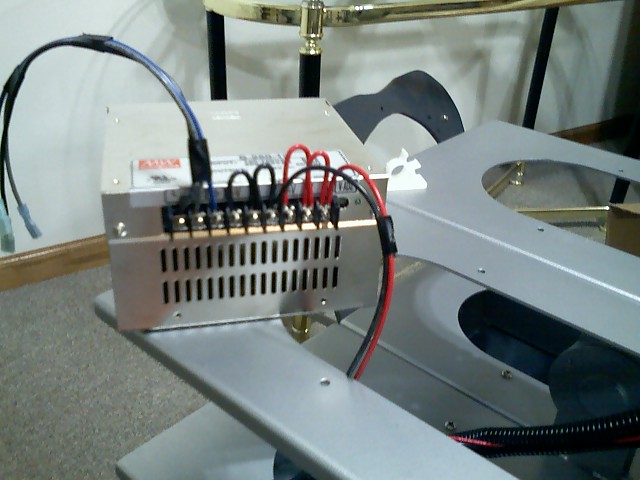

I found a small regulated 12v power supply on Ebay. It fits into one of the legs nicely and powers everything in the robot. Be sure you use a quality supply or you will get noise in the audio system.

01-29-08_2007

Steel tread sections I had made, which I sell in the B9 site vendor area, are getting ready to ship out.

OLYMPUS DIGITAL CAMERA    05-08-08_1956

05-11-08_1503

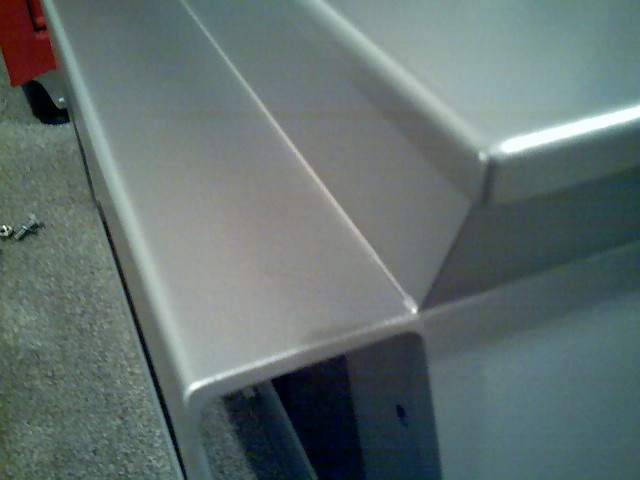

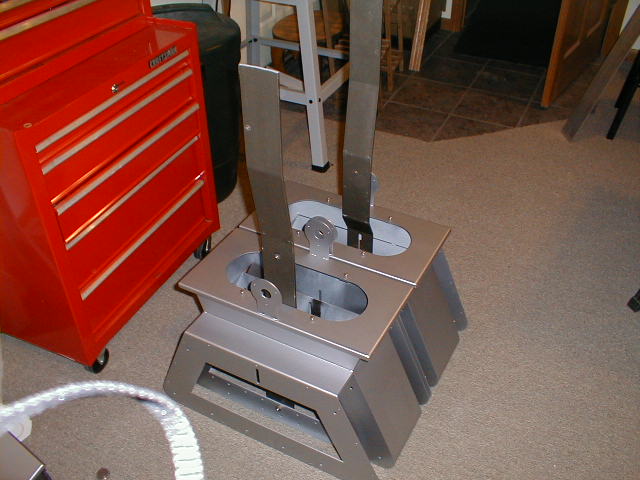

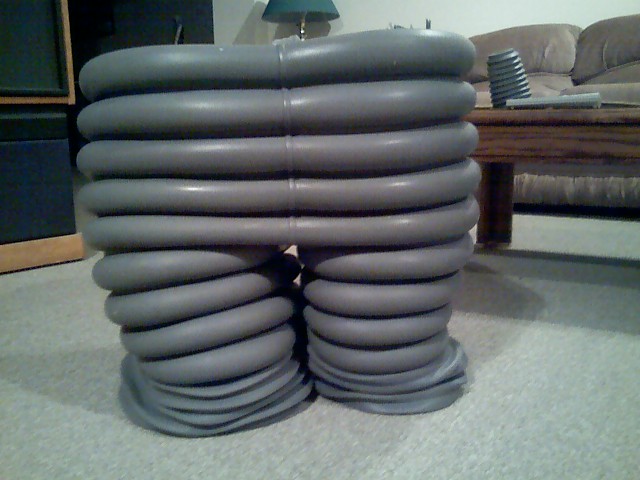

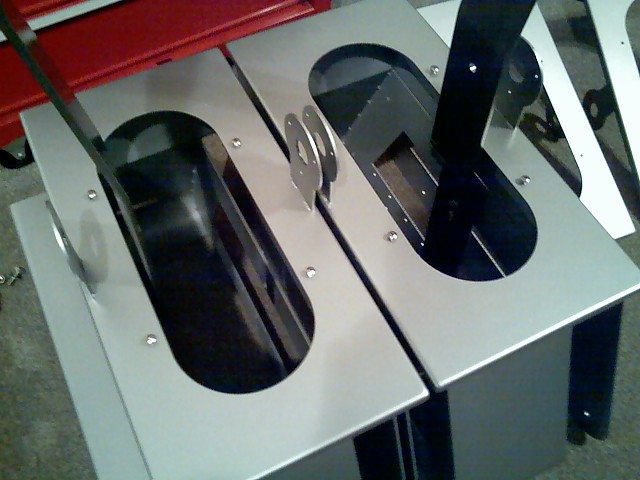

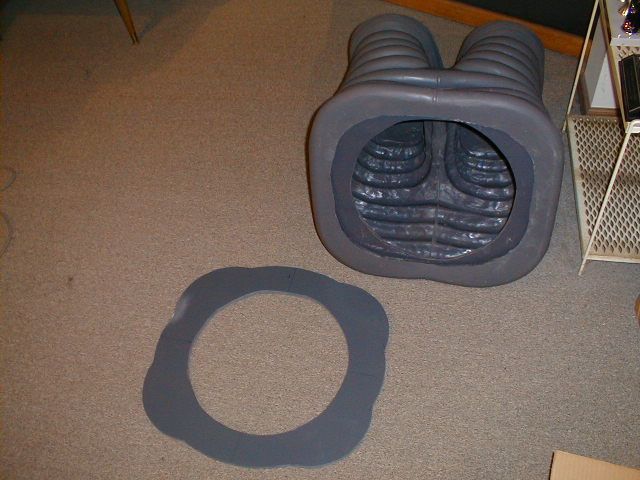

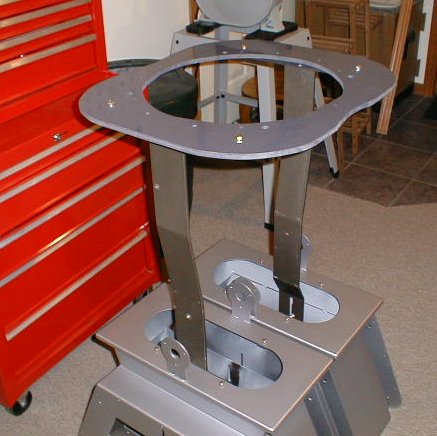

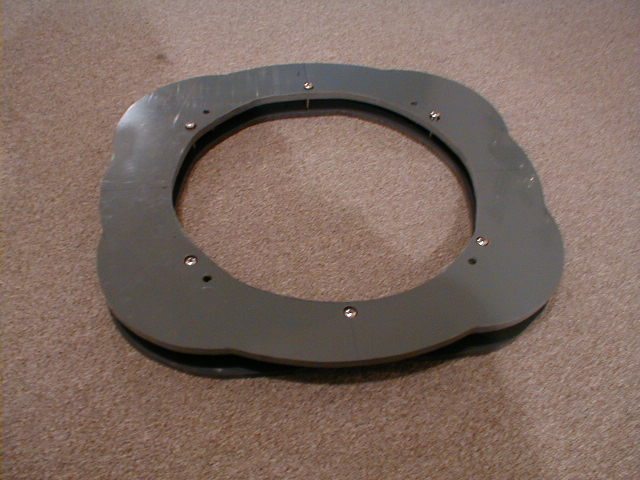

Work has begun on the leg section. Here are some pics of the waist plate, legs and support. The support is made from plans provided by Craig R. Very nice heavy duty design and allows the robot to be used as a costume. The torso can also tilt about 20 degrees forward and backward. The leg supports are set to make the legs at max height. About 38 1/2″ from the floor to the top of the waist plate. The pics farther down the page are with the legs at their shortest height adjustment giving them the squished look like on the TV series.  They measure 37″ floor to waist plate.

OLYMPUS DIGITAL CAMERA    OLYMPUS DIGITAL CAMERA

11-10-06_1922      P2100002

OLYMPUS DIGITAL CAMERA    02-28-07_2000

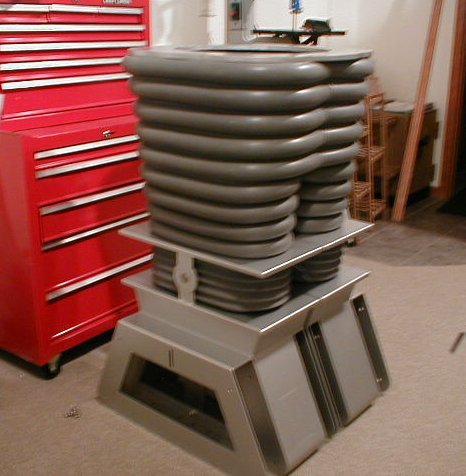

P2110007    02-28-07_1959

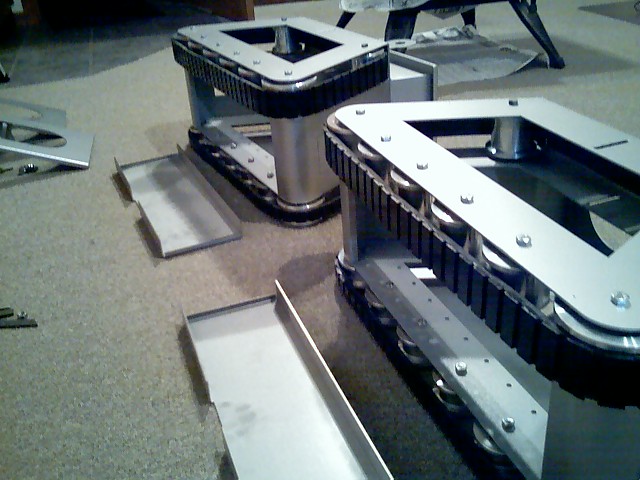

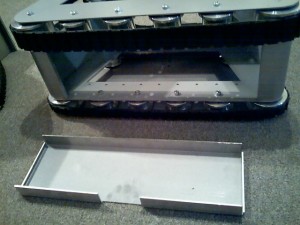

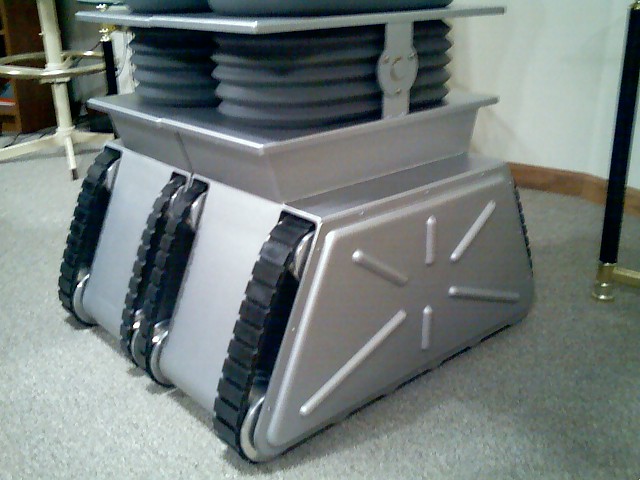

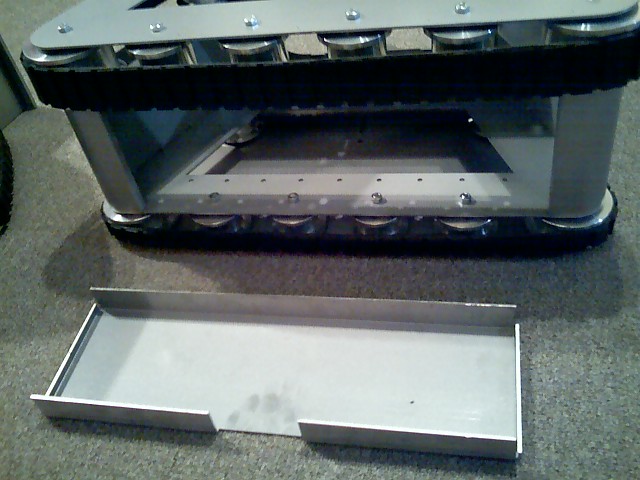

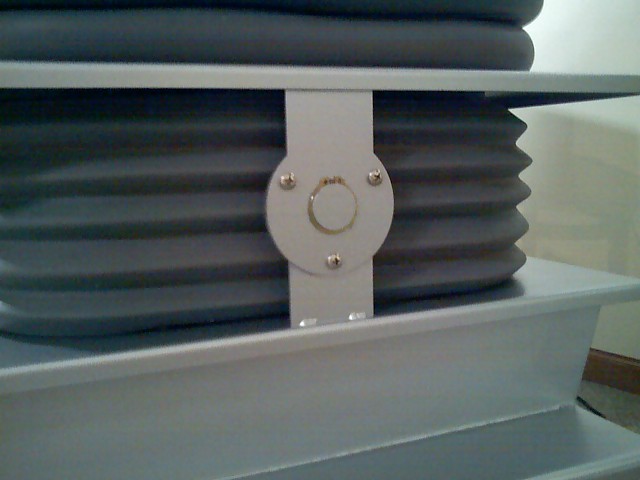

December 2007: I’ve installed the wheels and treads into the tread section. Mine wont be motorized so there is room for a person’s feet while wearing the B9.

11-12-07_2004    11-12-07_2003



12-29-07_1954    12-29-07_1953

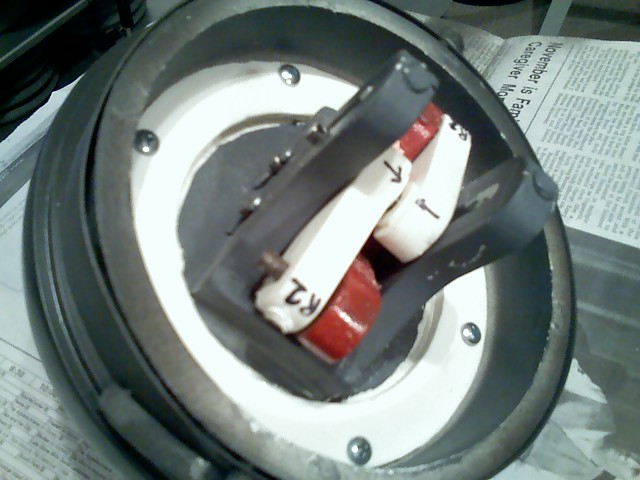

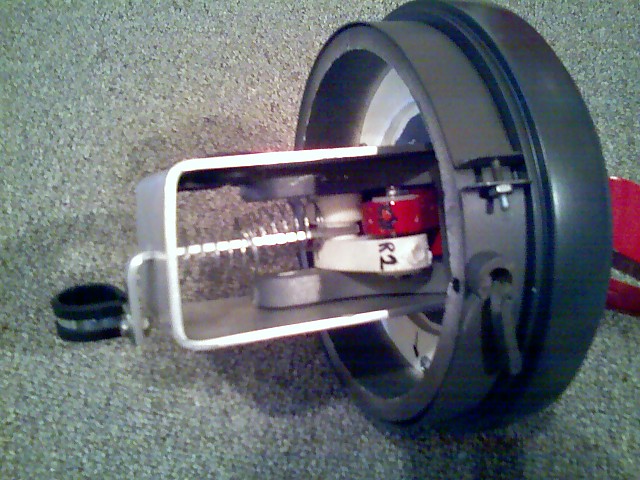

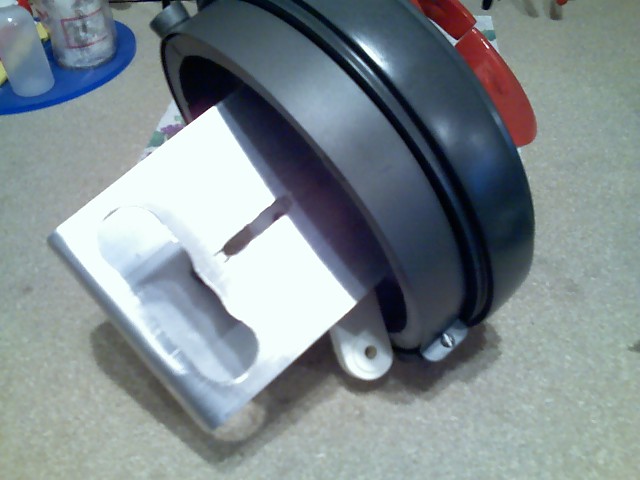

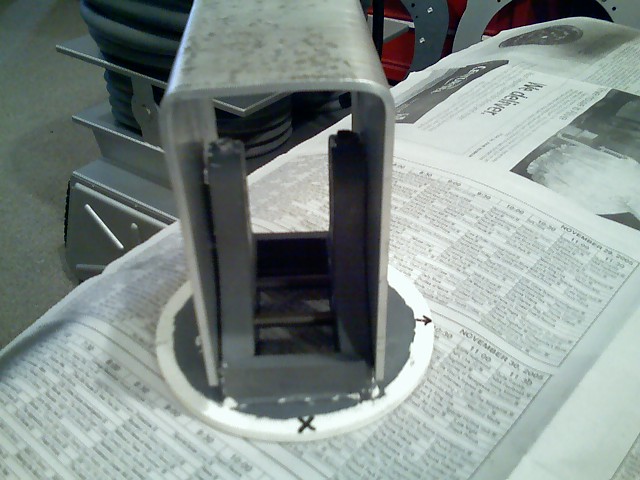

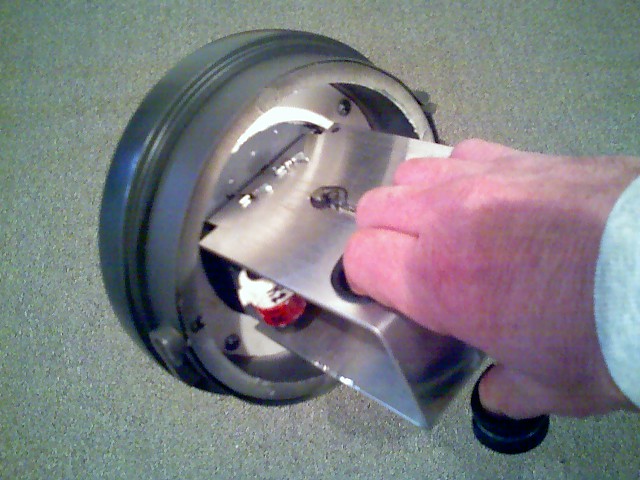

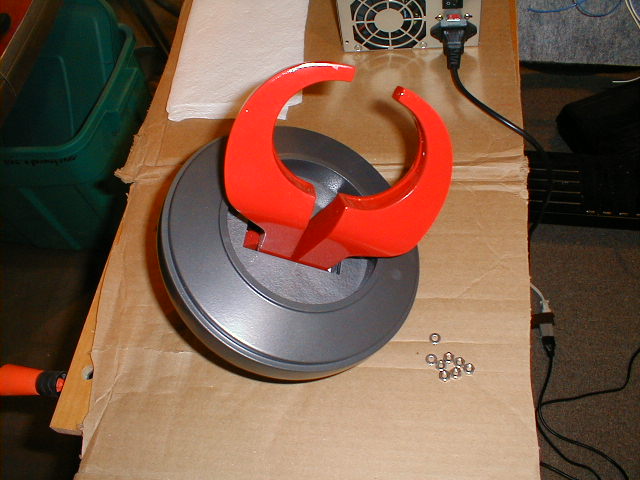

The claws are from Bill K / Rod R. Very nice pieces. I made a mount to operate them by hand. I used a piece of 1/8″ aluminum plate I bent and drilled and added  3/4″ aluminum stock bent 90 deg and a hose clamp for operating them with my thumb. A return spring keeps the claws closed.

OLYMPUS DIGITAL CAMERA    12-14-07_2028

12-14-07_2029    12-29-07_1958

12-16-07_1346    12-29-07_1957

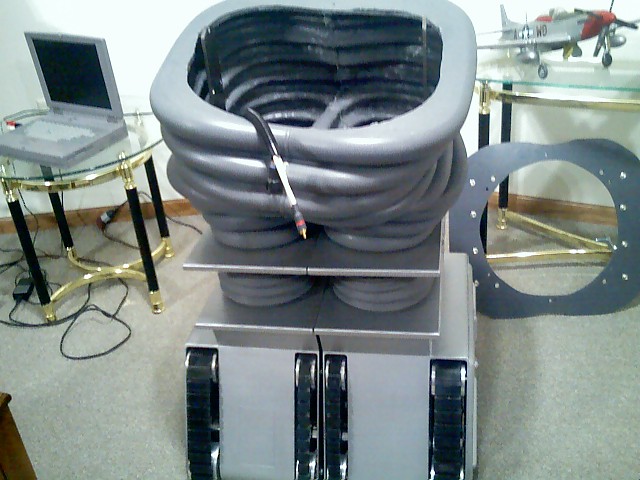

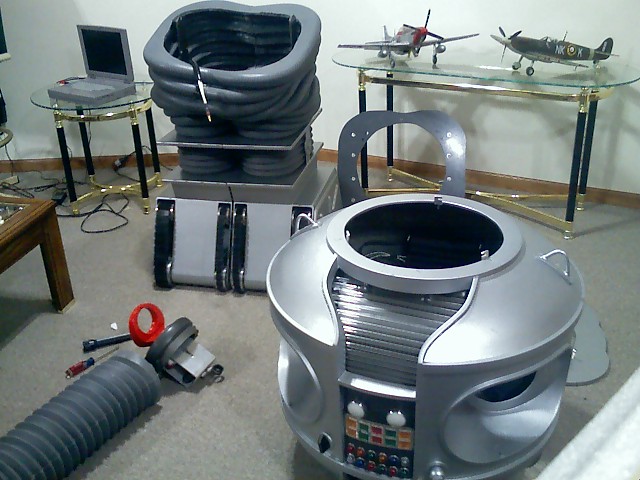

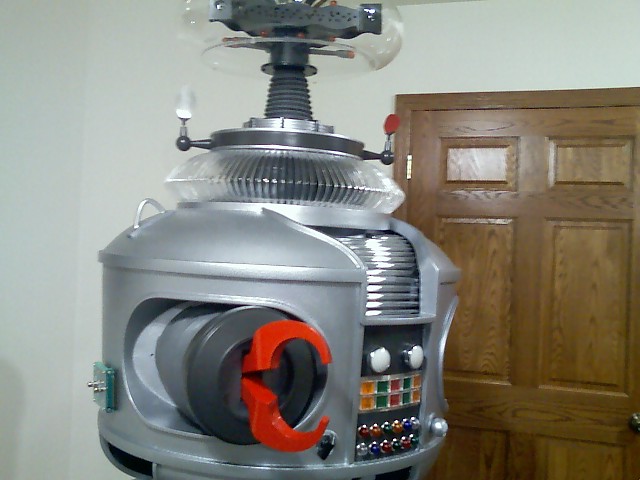

Putting all the pieces together….

02-12-08_1916    02-12-08_1917

03-03-08_2034    03-03-08_2037

03-03-08_2047    03-03-08_2042

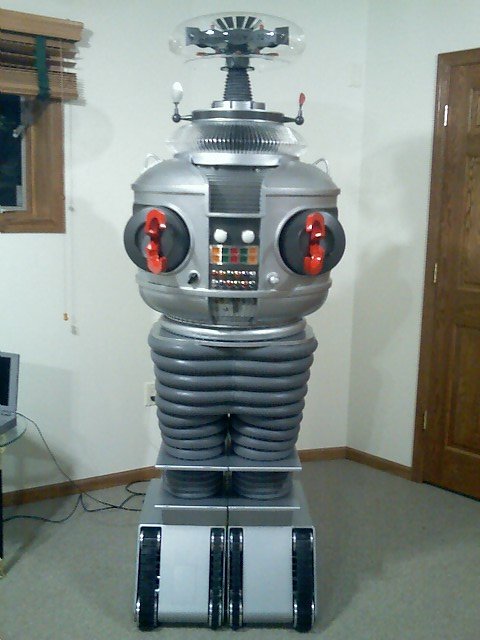

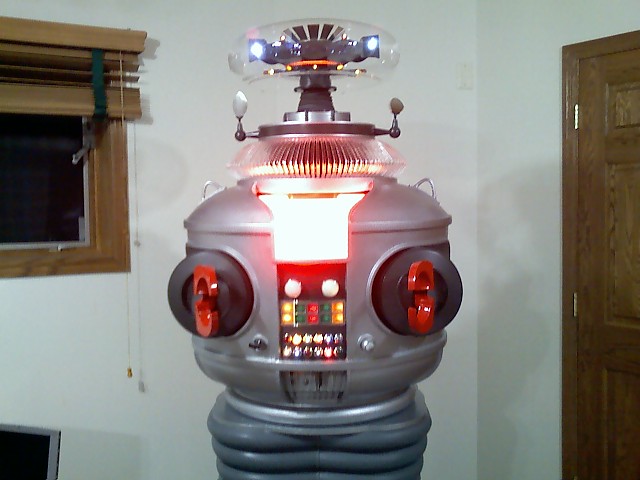

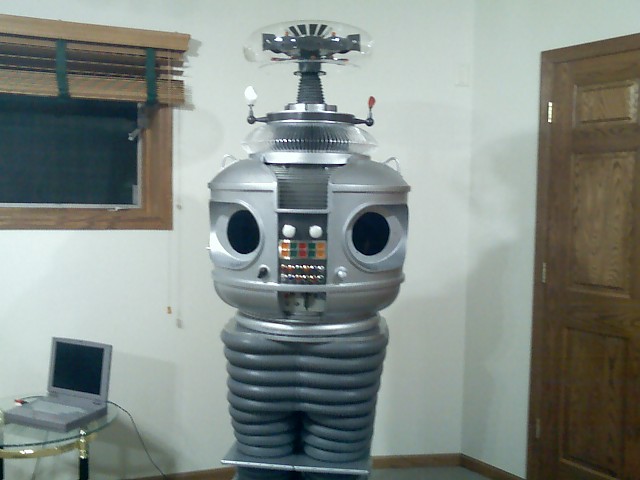

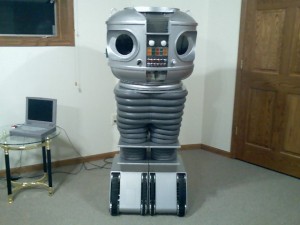

March 2008 finally “done”. I’m sure there will be some changes in the future. Its been a great challenge and lots of fun building.



03-06-08_2109    03-03-08_2047



A vid on You Tube during my first “test drive”







5-22-10   PBS is starting production of the segment in their Pioneers of Television series. It covers SciFi shows from early television.

I was invited to bring my B9 in to their studio for filming to appear in the series. Here are some pics and video from the shoot:
